SKYRC POWER SUPPLY 200W
SKYRC POWER SUPPLY 200W
Couldn't load pickup availability

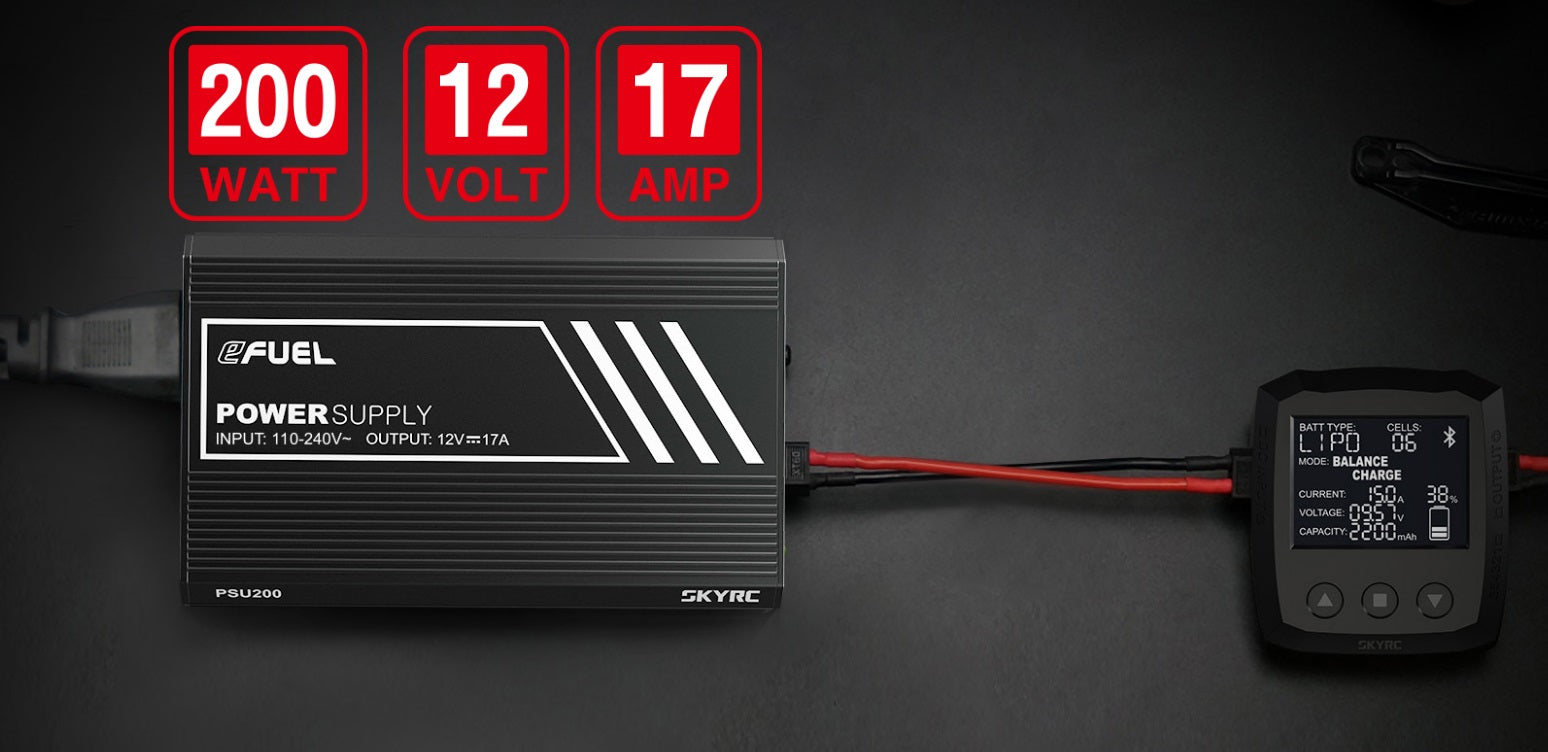

SkyRC eFuel 200W Power Supply Adapter 12V/17A
Built for most demanding pocket charger
Converts standard household power 100-240V AC to 12V DC power and supply up to 17 amperes of continuous power.

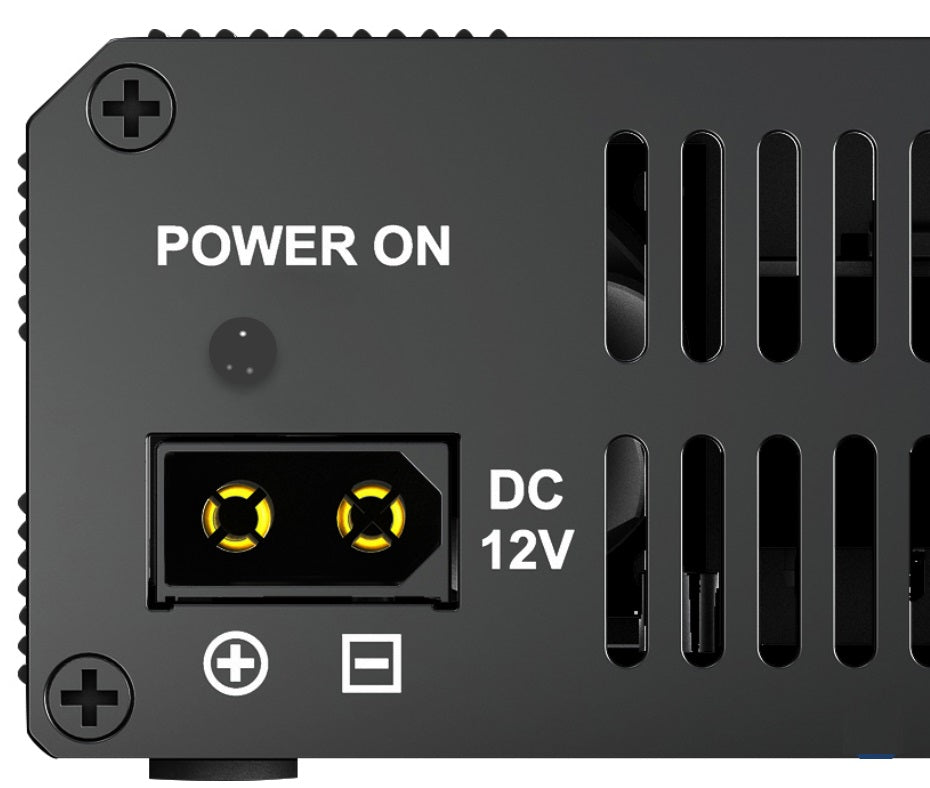

With the almost de facto standard of XT60 connector, reverse polarity preventing and the super-solid connection is secured!

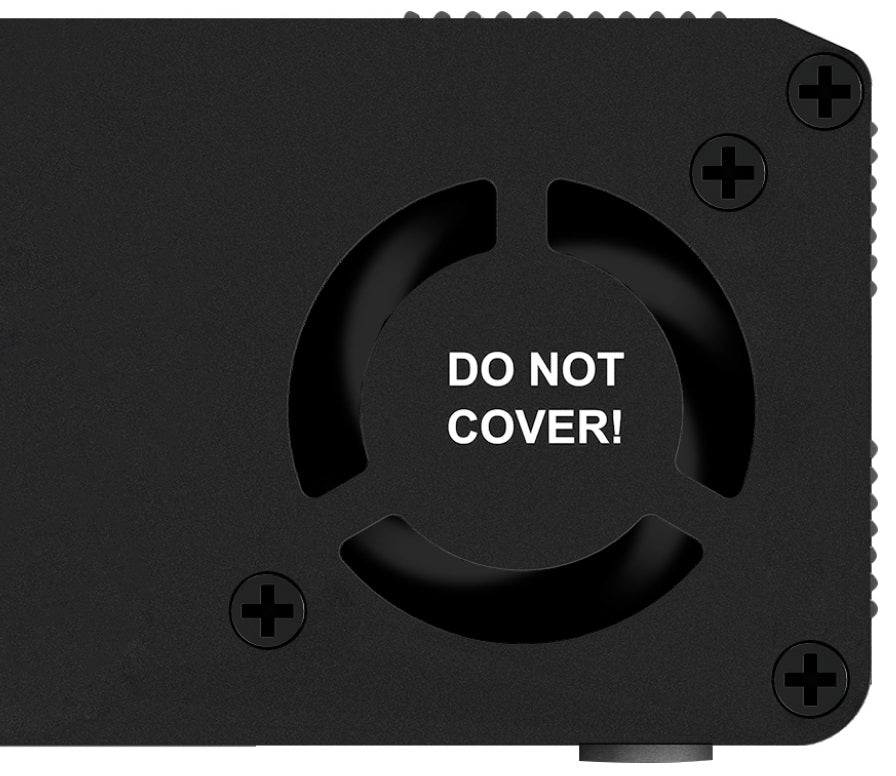

Thermal Controlled 8000rpm high-speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.
Active PFC
Active PFC(power factor correction) refers to the method of increasing power factor (PF) by using active electronic circuits with feedback that control the shape of the drawn current, resulting in higher efficiency. PSU200W comes natively with Active PFC, delivering more true and efficient power!
Overload/Error Indication
The LED indicator turns off whenever the device connected to the Power Supply is drawing more power than it can provide. The power supply will shut down its output to protect its circuitry from damage, then reset automatically.
Package
1. SkyRC eFuel 200
2. Power cord
Specifications:
Size and Weight
Case Size：112x71x40.3mm
Weight：380g
Power Supply
Voltage：100-240V
Input AC Frequency：50-60Hz
Output Current：17A
Output Voltage：12V DC±0.5V
Output Voltage Ripple：<300mV
Power Efficiency：93%
Power Factor：>0.98

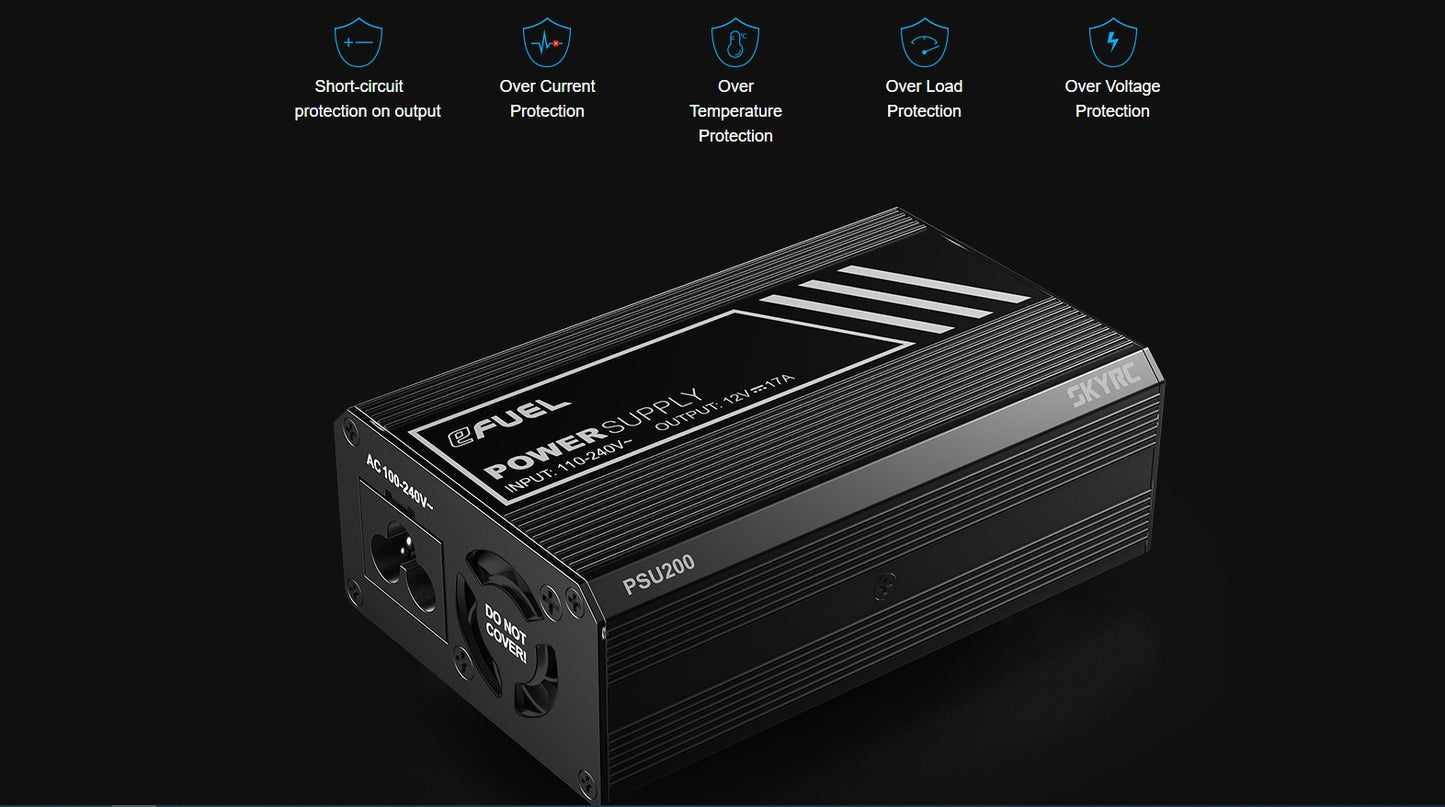

Protection
Current Overload Protection：>17A
> Over Temperature Protection：>105℃
Cooling Method：Cooling Fan
Working
Operating Temperature：0-40℃
Operating Humidity：10%-90%
