VectorSave™10 Phantom 4 RTK, Phantom 4 EASA M2 version

VectorSave™10 Phantom4 parachute system consist of

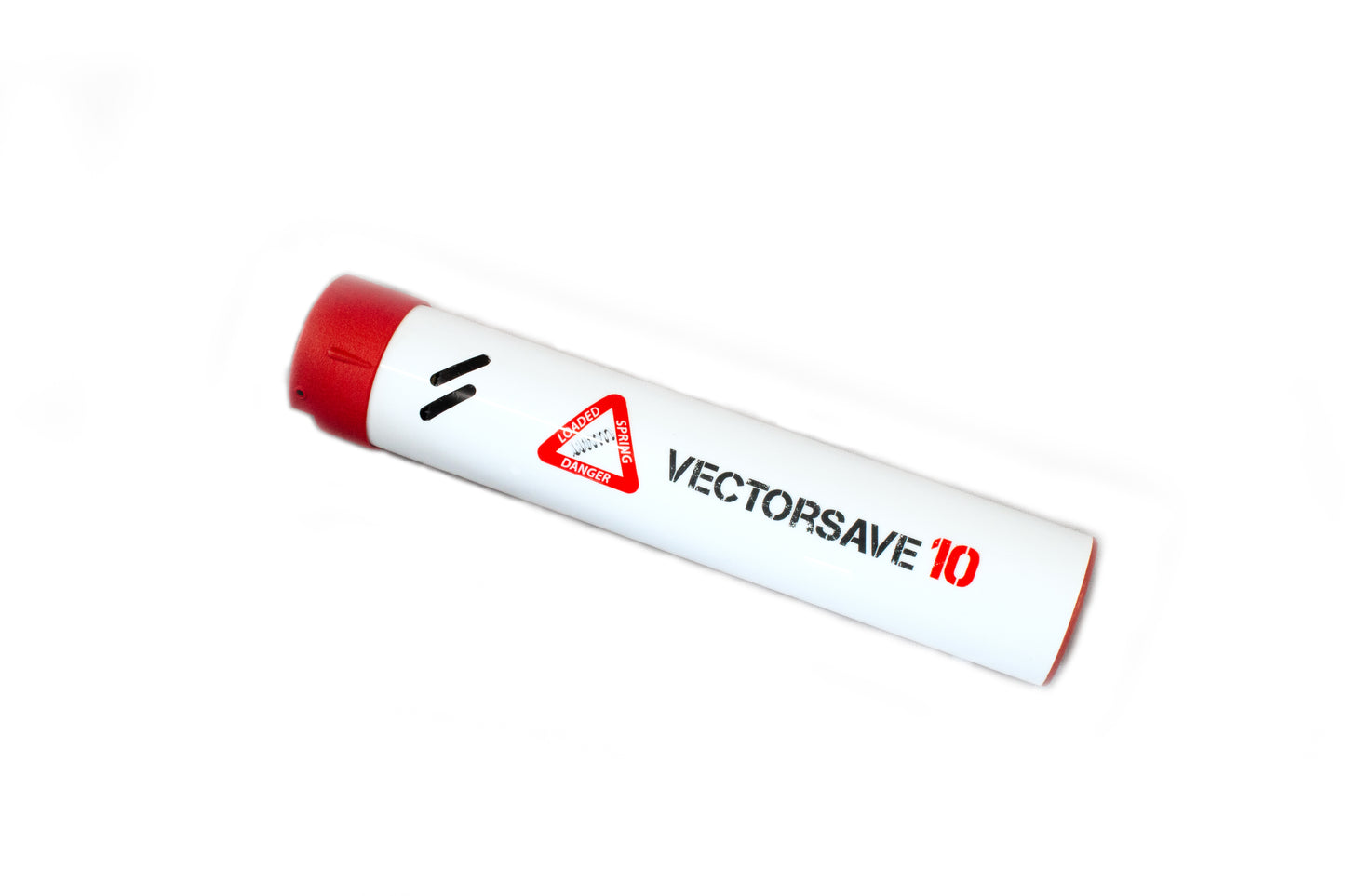

VectorSave™ 10 launcher with parachute.

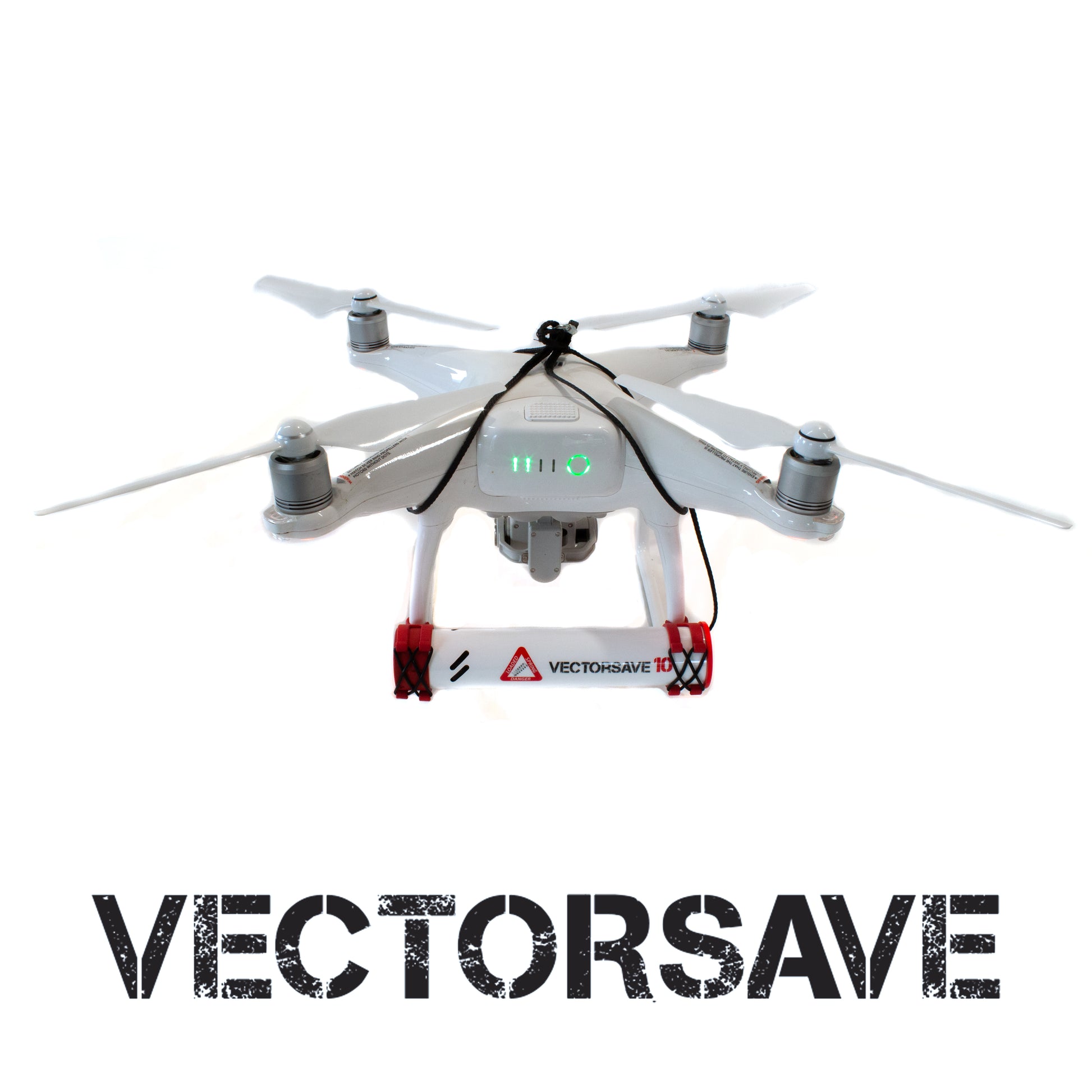

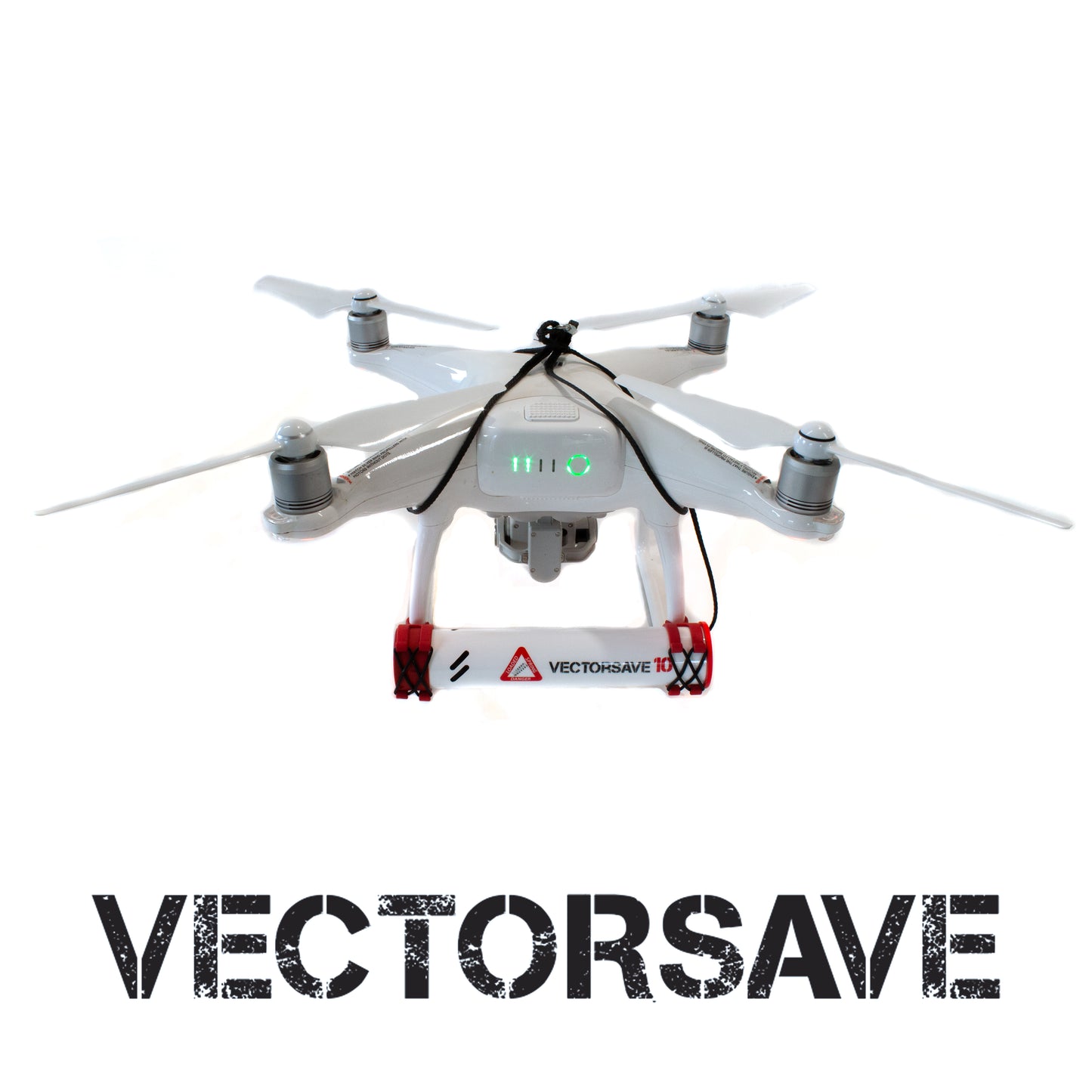

Parachute system has convenient snap-on connection
to Phantom landing gear and it is harnessed around the
center body of Phantom copter.

VectorSave™10 is compatible with the Means of Compliance with Light-UAS.2512 / Means of compliance with SORA M2 (medium robustness) published by EASA 06 July 2023.

Once you are ready to take o you will arm your parachute
by pressing the buttom on VectroSave™ 10 tube. Light
will start to blink on the trigger to indicate your parachute
is armed. One you land back you need to press button on
tube to disarm parachute system - arming indicator light
is now off and green light is on.

Operation of VectorSense Phantom system is fully
automatic. Parachute will be deployed If something
goes wrong and your heli is falling down of tipping over in mid air.

Phantom parachute system.
Technical details
launcher tecnology: Moverod™
parachute diamensions: 0,85 m x 0,85 m (0,72 m2)
weight: 115g
